Meet vertiport flight throughput requirements with safe & quick aircraft transfers between parking stands and FATOs

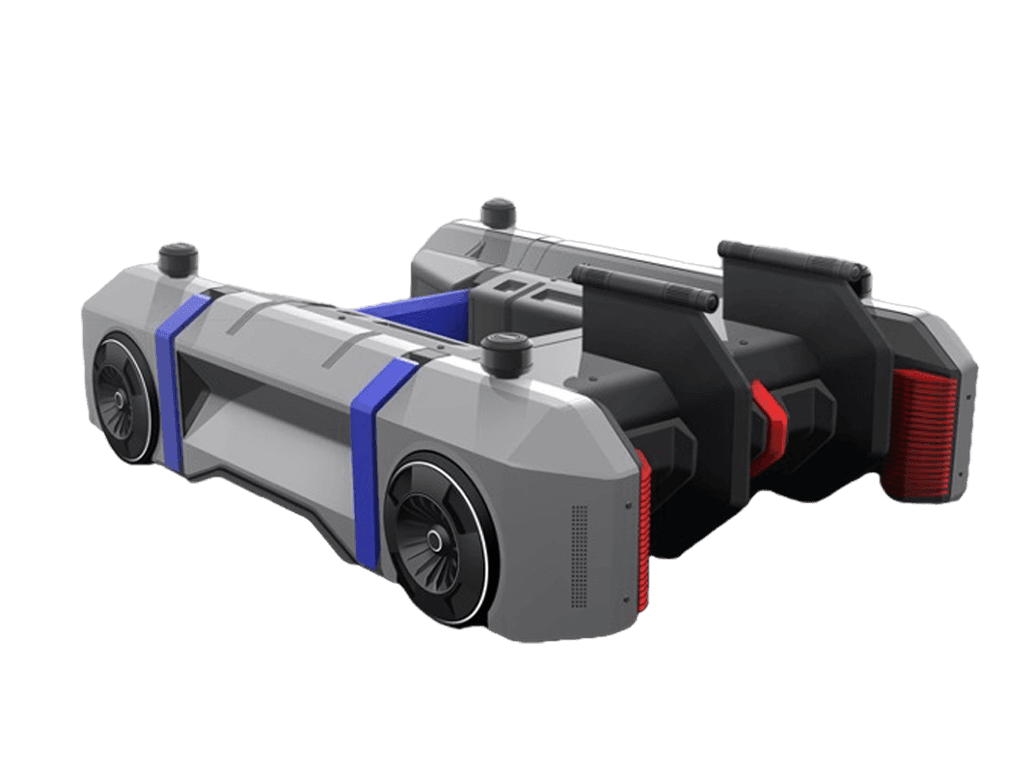

ATLAS is an electric & autonomous ground support vehicle designed to pushback and taxi eVTOLs and Part 23 aircraft

AUTOMATED AIRSIDE

ATLAS’ onboard autonomy stack (powered by HALO) complements cloud-based airside navigation with localized path-planning & collision avoidance

SAFE PUSHBACK & TAXIING

Full 360º visibility achieved with a redundant sensor stack, designed to prevent wing + tail strikes and detect & avoid obstacles while towing aircraft

EXTENDED AIRCRAFT RANGE

Sustainably taxi aircraft between parking stands and FATOs for an engine-off operation to extend aircraft range, while reducing energy consumption and vertiport noise

MINIMIZED OPERATING COSTS

Avoid expensive ground handling-related accidents and FOD through perfect repeatability and reduce ramp agent workload

CONOPS


HALO Dispatches ATLAS

Our software pulls from the vertiport/OEM’s real-time flight plans to inform taxi-in or taxi-out operations for aircraft. Vehicle operational statuses across the vertiport are relayed to HALO, where available vehicles with nominal charge levels are considered for the operation. HALO dispatches a tow vehicle and plots a trajectory between a parking stand and FATO.


Aircraft Rendezvous & Precision Alignment Coupling

Once ATLAS navigates to the dispatched pick-up point, a computer vision-based Precision Alignment system is used to orient the vehicle in parallel with the nose gear of the eVTOL using top-mounted cameras. Precision Alignment engages when the nose-landing gear (NLG) is ≤1m away and within a 90º FOV of the vehicle’s forward cameras. Computer vision identifies NLG features such as the wheel, fairing, strut, and fuselage underbelly. The vehicle approaches the NLG within a 20º buffer angle, where measurement feedback from Precision Alignment is fed to the motor controllers to adjust the vehicle’s position & orientation.


ATLAS Tows Aircraft Across Airfield

After coupling with the aircraft, ATLAS begins taxiing on an optimal trajectory plotted by HALO to the desired FATO or parking stand. Similarly, dynamic path updates for the vehicle are issued when necessary through the cloud according to potential weather warnings, air traffic/flight plan changes, or near-field obstacles/obstructions detected by the tow vehicle’s sensor suite.


Aircraft Dropoff & Operational Status Update

ATLAS holds on the designated airfield marking prior to entering a FATO or parking stand, and receives final clearance to drop-off the aircraft. In the parking stand, the vehicle may remain attached to the eVTOL for the duration of the turnaround. On the FATO, ATLAS decouples from the aircraft using Precision Alignment, relays a status availability update, and navigates to its base station or next mission location.

FEATURES

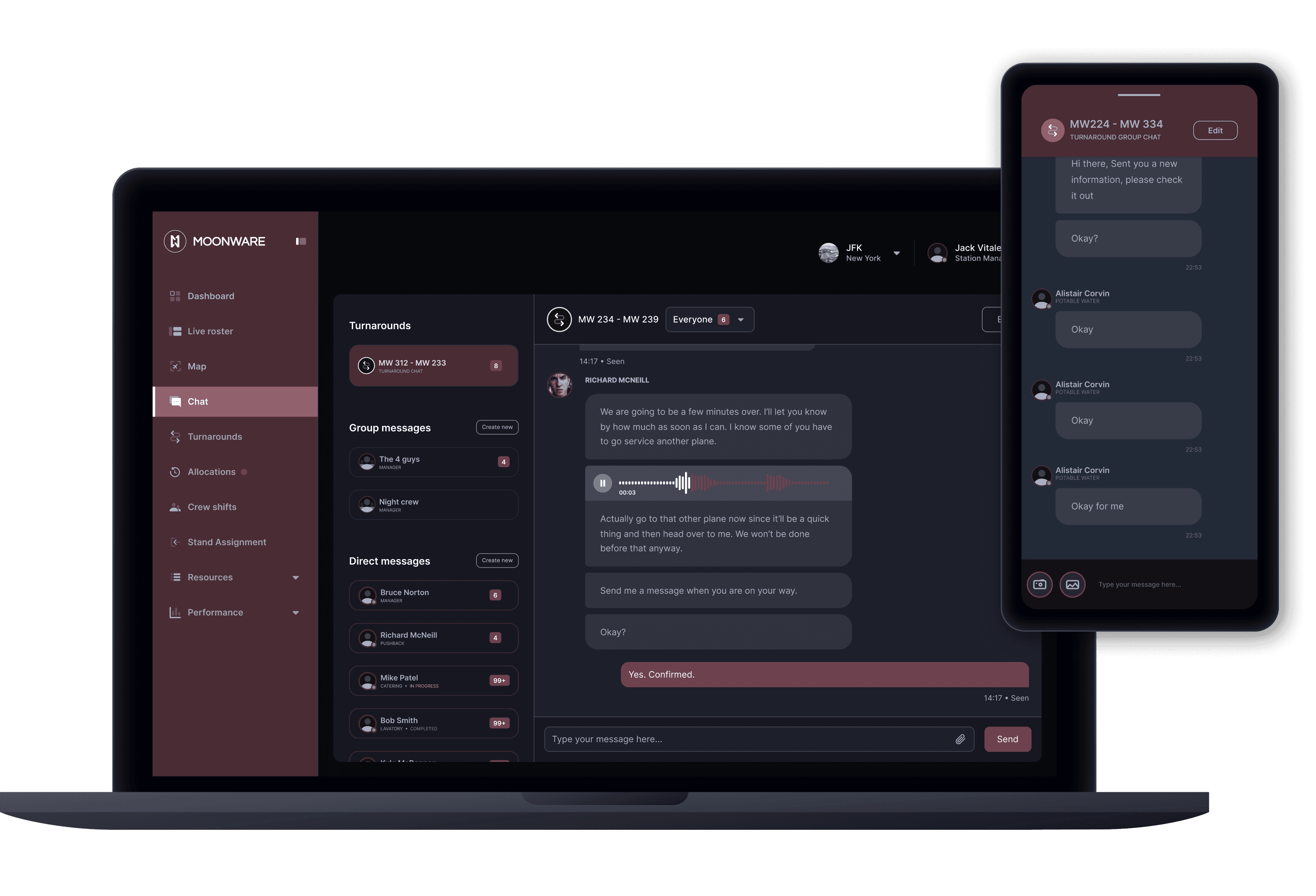

HALO efficiently orchestrates ATLAS’ movements for a determined airfield use case, pulling real-time location data from each vehicle and the flight cloud infrastructure of eVTOL and vertiport operators.
Onboard ultrasonic, LiDAR, camera, and radar sensor fusion grant the vehicle robust obstacle detection and navigation capabilities.
Novel and patented aircraft coupling mechanism leverages the weight of the nose gear to generate the necessary torque for tugging operations.
Inclined ramp platform is modular and can be adapted to accommodate different landing gear configurations, minimizing structural fatigue when compared to existing clamping or pin-latch mechanisms.
